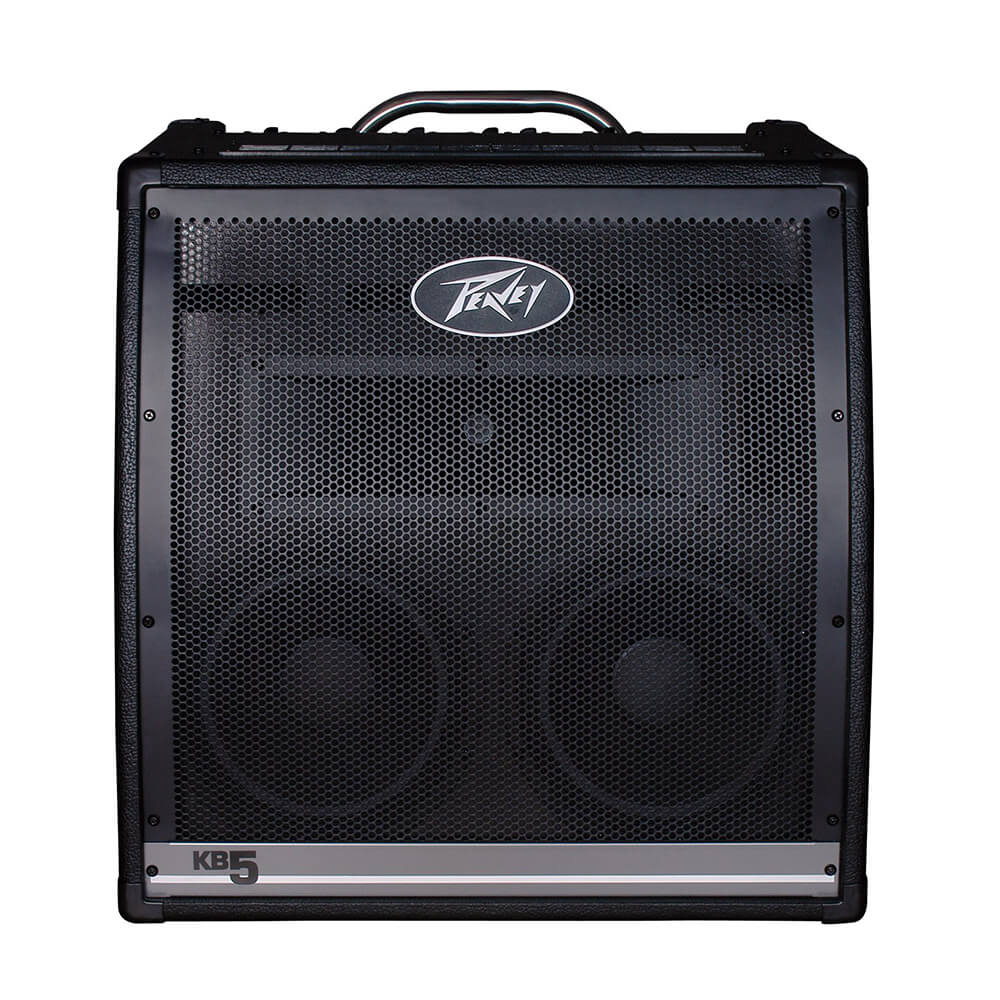

The Peavey KB5 Keyboard Amplifier was designed as a personal PA system in a keyboard amp. The Peavey KB5 Keyboard Amplifier features separate inputs on each channel and can easily handle voice, microphones and other instruments, including acoustic and electric guitars, drum machines and backing machines, such as CD and DAT players. Other essential features of the Peavey KB5 Keyboard Amplifier include stereo effects loop, ground lift, master level, XLR balanced stereo line out, DDT defeat switch and the capability to drive an external speaker. Peavey engineers have listened to input from keyboard players and put together an amplifier that combines excellent features and sound in one portable package. The new Peavey KB5 Keyboard Amplifier delivers awesome sound reproduction for all of your keyboard sounds—from thundering bass to crystal highs—it’s all there! FEATURES: 150 watts/200 watts with external speaker 5 channels Stereo mixer with 2-band EQ and main effects send/return Balanced‚ stereo line outs Mic/line channel with 3-band EQ and effects send/return Monitor input with level control and assign Headphone out with level control Built-in casters and handle for easy moving Ultra-strength‚ retractable‚ locking handle for easy transport—just lock it‚ lean it back and go! Two 10 inch speakers and horn Extension speaker capability Packed Weight: 96.02 lb (43.55 kg) Packed Length: 28.25″ (71.75 cm) Packed Width: 21.25″ (53.98 cm) Packed Height: 27.5″ (69.85 cm) SPECIFICATIONS: PREAMP SECTION The following preamp specs are measured @ 1 kHz‚ nominal signal levels are with channel level controls set at 5‚ minimum levels are with channel level controls set at 10. Channel 1‚ 2 and 3 inputs: Input Impedance: 100K‚ Left/Mono Nominal Input Level: -22 dBV‚ 79 mV RMS Minimum Input Level: -40 dBV‚ 10 mV RMS Nominal Input Level: -15 dBV‚ 178 mV RMS Minimum Input Level: -33 dBV‚ 22 mV RMS Channel 4 input: Low Z Input Impedance: 5 k Ohms Nominal Input Level: -28 dBV‚ 40 mV RMS Minimum Input Level: -48 dBV‚ 4 mV RMS High Z Input Impedance: 100 l‚ Left Nominal Input Level: -5 dBV‚ 560 mV RMS Minimum Input Level: -22 dBV‚ 79 mV RMS Right: -1 dBV‚ 1.1 V RMS Minimum: -16 dBV‚ 158 mV RMS Headphone output Load Impedance: 8 Ohms or greater Nominal Output: 100 mW RMS Main line out Output Impedance: <100 Output Level: 18 dBV POWER AMPLIFIER SECTION Rated power and load: 200 Watts RMS/4 Ohms or 150 Watts RMS/8 Ohms with DDT off (1 kHz, 1% THD @ 120 VAC line) Frequency response: 0, -1dB, 20Hz–20kHz @ 100 Watts RMS / 8 Ohms Total harmonic distortion: Less than 0.01% @ 1 kHz/8 Ohms Typically less than 0.08%‚ 20 Hz–20kHz DDT dynamic range: Greater than 20 dB DDT maximum THD: Below 0.5% THD for 6 dB overload Below 1% THD for 20 dB overload Hum and noise: Greater than 100 dB below rated power Power consumption: 300 Watts @ 120V AC‚ 50/60 Hz‚ domestic 300 Watts @ 220–230/240V AC‚ 60 Hz‚ export
