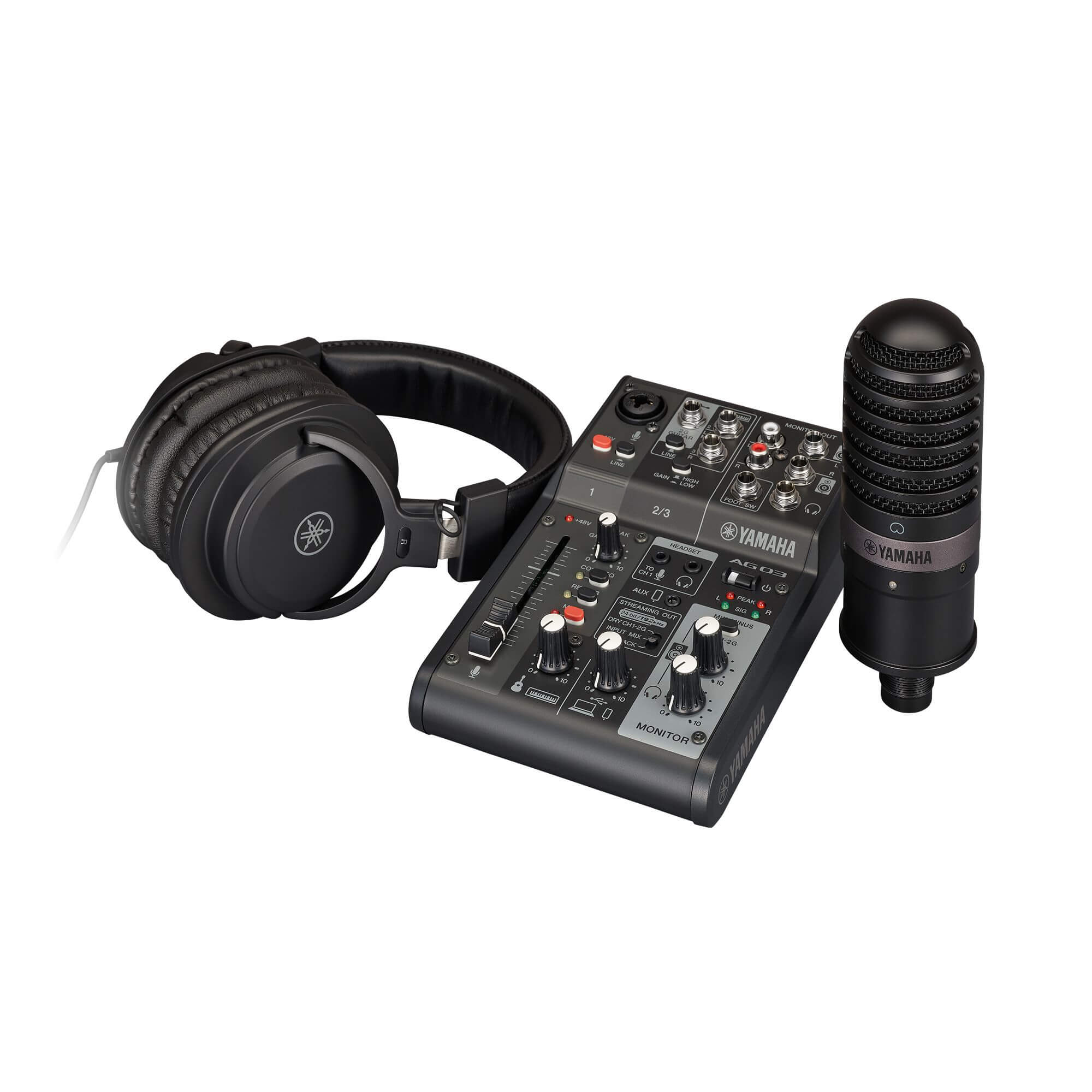

Your Audience Awaits. The AG03MK2 LSPK (Live Streaming Package) is a full streaming setup that includes, and centers around an AG03MK2 3-channel mixer— the successor to the AG03 console that has become a mainstay of the personal live streaming market. The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station. Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment. AG03MK2 Outline Input Channels Mono[MIC/LINE] 1 – Combo (Mic, 48 V phantom power / Line), 3.5 mm (1/8″) stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously Stereo[LINE] 1 – Stereo Line / Guitar Input (Mono) Smartphone 1 – 4-pole mini input/output (TRRS) USB 1 Output Channels PHONES 1 – PHONES / HEADSET PHONES *Cannot be used simultaneously Smartphone 1 – 4-pole mini input/output (TRRS) MONITOR OUT 2 – L/R Stereo: Phone, RCA USB 1 Bus 1 Stereo Functions MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) On-board processors DSP COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller USB USB Audio 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C USB DC Power input 1 – Type-C, 5 V DC, 900 mA General specifications Power requirements 5 V DC, 900 mA Power consumption Max. 4.5 W Dimensions W 126 mm (5.0″) H 63 mm (2.5″) D 201 mm (7.9″) Net weight 0.8 kg (1.8 lbs) Included Accessories USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information Others Operating Temperature: 0 to 40 ℃ YCM01 Microphone Microphone Unit Back electret condenser type Polar Pattern Cardioid Adress Type Side Frequency Response 30 Hz – 20 kHz Max Input SPL 130 dB (THD ≦ 1.0 ％ at 1 kHz) Sensitivity -37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz) Connector XLR Dimensions (Microphone Only) Ø55 x 166 mm (Ø2.2″ x 6.5″) Weight (Microphone Only) 0.4 kg (0.9 lbs) Included Accessories Microphone stand adaptor x 1, Microphone pouch x 1, Owner’s manual, Technical specifications Compatible operating systems (AG01/AG03MK2/AG06MK2) Please see following page. Windows AG Controller Yamaha Steinberg USB Driver Mac AG Controller iOS AG Controller
