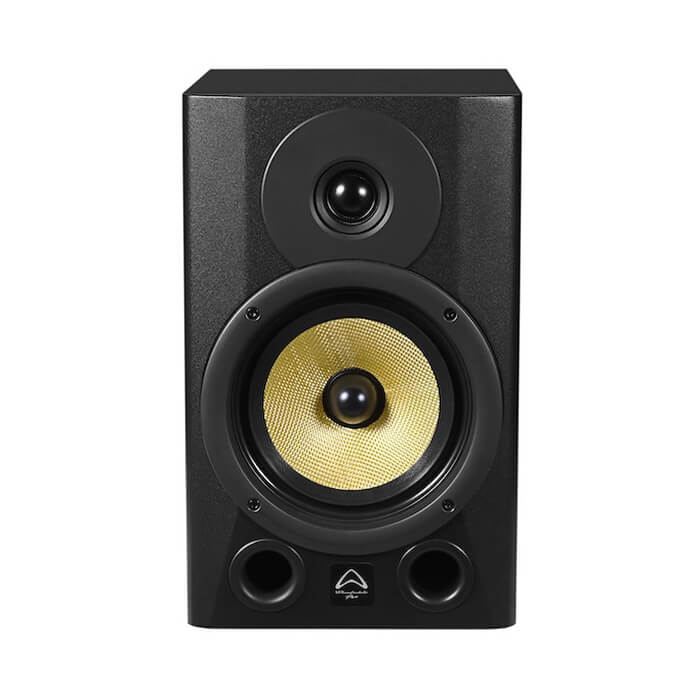

TWS BLUETOOTH Using the BT Stereo link mode, 2 units of Diamond Studio BT create their own Stereo linked pair. Diamond Studio BT use TWS (True Wireless Stereo) technology to create a controllable linked pair of speakers from a single Bluetooth input. SUPER ACCURATE Diamond Studio -BT monitors are designed to be super accurate. Experience every nuance… or even every problem with your mix. Diamond Studio BT are honest. A great mix is still a great mix. A bad mix, is still a bad mix. Either way, Diamond Studio -BT will let you hear the reality. SPECIFICATIONS MODEL NAME DIAMOND STUDIO 7-BT System Type Active 6.5” 2-way Bi-Amplified Freq. Range (-10 dB) Analog Input 38 Hz-25 KHz Maximum SPL (peak @1 m) 113 dB LF Transducer 6.5″ Fiberglass composite woofer HF Transducer Silk Soft dome tweeter Coil Size (mm / inches) 25.4 mm / 1” High Frequency Coverage (H x V) 135° x 110° Total Power Amplifiers 150 W Low-Frequency Power Amplifier (Class D) 90 W Continuous / 180 W Peak High- Frequency Power Amplifier (Class D ) 60 W Continuous / 120 W Peak Electronic Crossover: Crossover Frequency 2.2 KHz Controls Equalization (dB) HF / LF Level Adjust (-2, 0, 1 , 2) System Volume -∞ to 10 dB Amplifier Protection Yes Power On Protection Power switch on / off mute Thermal Protection Amplifier shutdown, auto reset Driver, DC and Short Protection Yes Limiter Indicator Red LED Power Indicator Green LED/white LED (LOGO) Input type Balanced / Unbalanced / Bluetooth Input Connectors TRS JACK / FEMALE XLR/RCA AC Power Options 100 V-240 V Power On Indicator LED Cabinet Material MDF Cabinet Colour black Dimensions (Unpacked): Height 340 mm /13.39 in Width 210 mm /8.27″ Depth 260 mm /10.24″ Dimensions (packed): Height 400 mm/15.75 in Width 272 mm/ 10.71 in Depth 325 mm / 12.80 in Weight Net Weight 6.84 kg / 15.1 lbs Gross Weight 7.82 kg / 17.20 lbs
