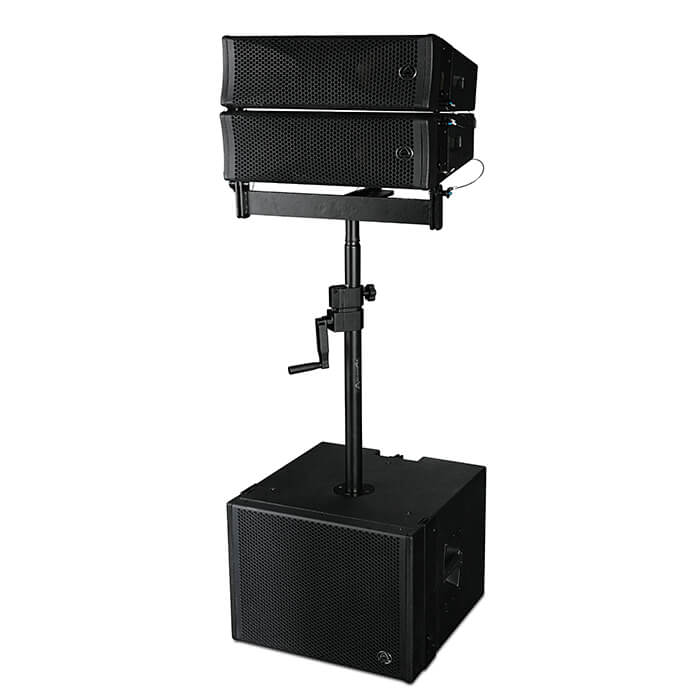

DUAL 5″ At the heart of the WLA-25 is 2 x 5″ custom Wharfedale Pro LF drivers. These feature 2.5″ voice coils to ensure high efficiency and high power handling. The HF Compression driver is also custom made by Wharfedale Pro. Using a Neodymium magnet and a 1.75″ voice coil, this compression driver is coupled to a 100° x 10° waveguide. These custom designed transducers are what give a WLA-25 system its incredible sound and power handling capacity. JUST IMAGINE Imagine your dream system! You can configure a WLA series rig to suit your needs! To help your design and system preparations, you can download some recommended system diagrams. These range from small to large and use a selection of our different amplifier ranges. DOWNLOAD THE SYSTEM DIAGRAMS WLA-25 STAND FRAME The optional WLA-25 Stand Frame makes a WLA-25 system even more portable and versatile. Use the WLA-25SUB MKII which features an M20 screw pole mount. SPECIFICATIONS Model Name WLA-25 WLA-25SUB MKII System Type Passive Passive Configuration Two-way 2 x 10” subwoofer Frequency Response ( /-3 dB) 108 Hz-18 KHz 56 Hz-1.5 KHz Frequency Range (-10 dB) 108 Hz-20 KHz 56 Hz-2.0 KHz Sensitivity (2.83 v / 1 m) HF:108 dB / LF:100 dB 107 dB Calculated Maximum SPL @1 m HF:135 dB / LF:127 dB 141 dB System Rated Impedance 16 Ω 4 Ω Low Frequency Transducer Size 2 x 130 mm / 5” 2 x 254 mm / 10” Voice Coil Size 35.0 mm / 1.4” 65.5 mm / 2.5” Rated Impedance 16 Ω 8 Ω LF Power (re:AES2-2012) 2 x 60 W 2 x 350 W High Frequency Transducer HF Driver Type Compression Driver – Neo Voice Coil Size 44 mm / 1.75” Exit Size 1″ Diaphragm Material Titanium Rated Impedance 16 Ω HF Power (re:AES2-2012) 40 W Nominal Coverage (H x V) 100° x 10° Power System Continuous Power 120 W 700 W System Programme Power 240 W 1400 W System Peak Power 480 W 2800 W Crossover frequency 3.7 KHz Input Connector 2 x speakON compatible 2 x speakON compatible Hardware Integral side plate adjustable rigging 0°-10° Integral, non adjustable Enclosure Enclosure Material 15 mm,18 mm Plywood 15 mm,18 mm Plywood Finish Rhino Black or white paint Rhino Black or white paint Grille Material & Finish Steel Steel Dimensions – (Unpacked) Height Front 164.5 mm / 6.47” 400 mm / 15.74” Height Rear 112.5 mm / 4.4” 400 mm / 15.74” Width 536 mm / 21.1” 536 mm / 21.10” Depth 363 mm / 14.3” 550 mm / 21.65″ Dimensions – (Packed) Height 606 mm / 23.85″ 610 mm / 24.01″ Width Front 430 mm / 16.92″ 470 mm / 18.50″ Width Rear 430 mm / 16.92″ 470 mm / 18.50″ Depth 235 mm / 9.25″ 596 mm / 23.46″ Weight Net Weight (kg / lbs) 13.0 kg / 28.66 lbs 37.0 kg / 81.57 lbs Gross Weight (kg / lbs) 15.0 kg / 33.06 lbs 39.5 kg / 87.08 lbs
