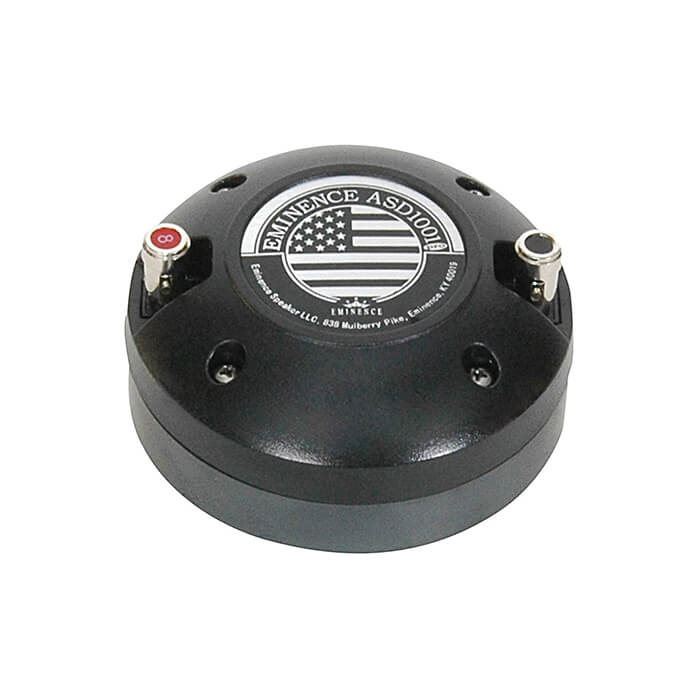

Eminence ASD 1001B 1″ HF Tweeter

$36.54 $65.77
SPECIFICATION Throat Size 1″, 25.4mm Nominal Impedance* 8Ω Minimum Impedance 7.6 ohm @ 2.3 kHz Power Rating** 50 W (EIA-426A) Resonance 0.59kHz Usable Frequency Range 2500Hz-20kHz Recommended Crossover 2.5 kHz / 18 dBkHz Sensitivity*** 104.1 Magnet Material Ferrite Magnet Weight 12oz, 0.34kg Voice Coil Diameter 1.3″ / 33mm Voice Coil Former Aluminum Diaphragm Material Titanium DC Resistance (Re) 6.7Ω MOUNTING INFORMATION Overall Diameter 3.5″, 88.9mm Driver Volume Displaced 0.009 cu.ft., 0.26 liters Depth 2″, 50.8mm Weight 1.7 lbs, 0.8 kg Mounting Thread N/A Mounting Holes Diameter 2X M6 Mounting Holes B.C.D. 3 in. 76.2 mm
