ESAB – Compatible PSF 315, 400 & 500 Consumables

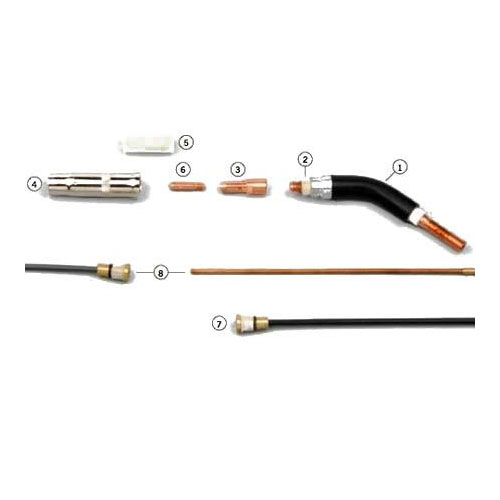

ITEM PART NO. DESCRIPTION QTY 1 366-388-880 Swan Neck – PSF 315 1 366-389-880 Swan Neck – PSF 400 1 366-390-880 Swan Neck – PSF 500 1 2 366-397-002 Diffuser Insulation – PSF 315/400 5 366-397-003 Diffuser Insulation – PSF 500 5 3 366-394-001 Gas Diffuser M6 – PSF 315 5 366-394-002 Gas Diffuser M8 – PSF 400 5 366-395-001 Gas Diffuser M6 – PSF 500 5 4 366-396-003 Nozzle Insulator – PSF 315 5 366-396-004 Nozzle Insulator – PSF 400 5 366-396-005 Nozzle Insulator – PSF 500 5 5 366-854-882 Nozzle c/w Ins. – PSF 315 – 16mm Bore 5 366-854-883 Nozzle c/w Ins. – PSF 400 – 17mm Bore 5 366-854-884 Nozzle c/w Ins. – PSF 500 – 18mm Bore 5 6 See Chart A Below Contact Tips – Standard 10 See Chart A Below Contact Tips – CuCrZr 10 7 See Chart B Below Steel Liners 1 8 See Chart B Below Aluminium Liners 1   CHART A – CONTACT TIPS STANDARD M6 x 30mm CuCrZr M6 x 27mm ARGON GAS CO2 GAS STAMPED 153-500-001 468-500-001  – 0.6mm 0.8 153-500-002 468-500-001 0.6mm 0.8mm 1.0 153-500-003 468-500-001 0.8mm 0.9mm 1.1 153-500-004 468-500-001 0.9mm 1.0mm 1.2 153-500-005 468-500-001 1.0mm 1.2mm 1.5 153-500-006 468-500-001 1.2mm 1.4mm 1.7 153-500-007 468-500-001 1.4mm 1.6mm 1.9   STANDARD M8 x 40mm CuCrZr M8 x 37mm ARGON GAS CO2 GAS STAMPED 153-502-009 468-502-003 0.6mm 0.68mm 1.0 153-502-001 468-502-004 0.8mm 1.0mm 1.2 – 468-502-005 0.9mm 1.0mm 1.2 153-502-002 468-502-006 1.0mm 1.2mm 1.5 153-502-003 468-502-008 1.2mm 1.4mm 1.7 153-502-004 468-502-009 1.4mm 1.6mm 1.9 153-502-005 – 1.6mm – 2.1 153-502-006 – 2.0mm 2.0mm 2.4 153-502-007 – 2.4mm 2.4mm 2.8   CHART B – LINERS STEEL ALUMINIUM WIRE SIZE LENGTH 366-549-882 366-550-882 0.6-0.8mm 3mtr 366-549-883 366-550-883 0.6-0.8mm 4.5mtr 366-549-884 366-550-884 0.9-1.0mm 3mtr 366-549-885 366-550-885 0.9-1.0mm 4.5mtr 366-549-886 366-550-886 1.2mm 3mtr 366-549-887 366-550-887 1.2mm 4.5mtr 366-549-888 . 1.4mm 3mtr 366-549-889 . 1.4mm 4.5mtr 366-549-890 366-550-890 1.6mm 3mtr 366-549-891 366-550-891 1.6mm 4.5mtr
