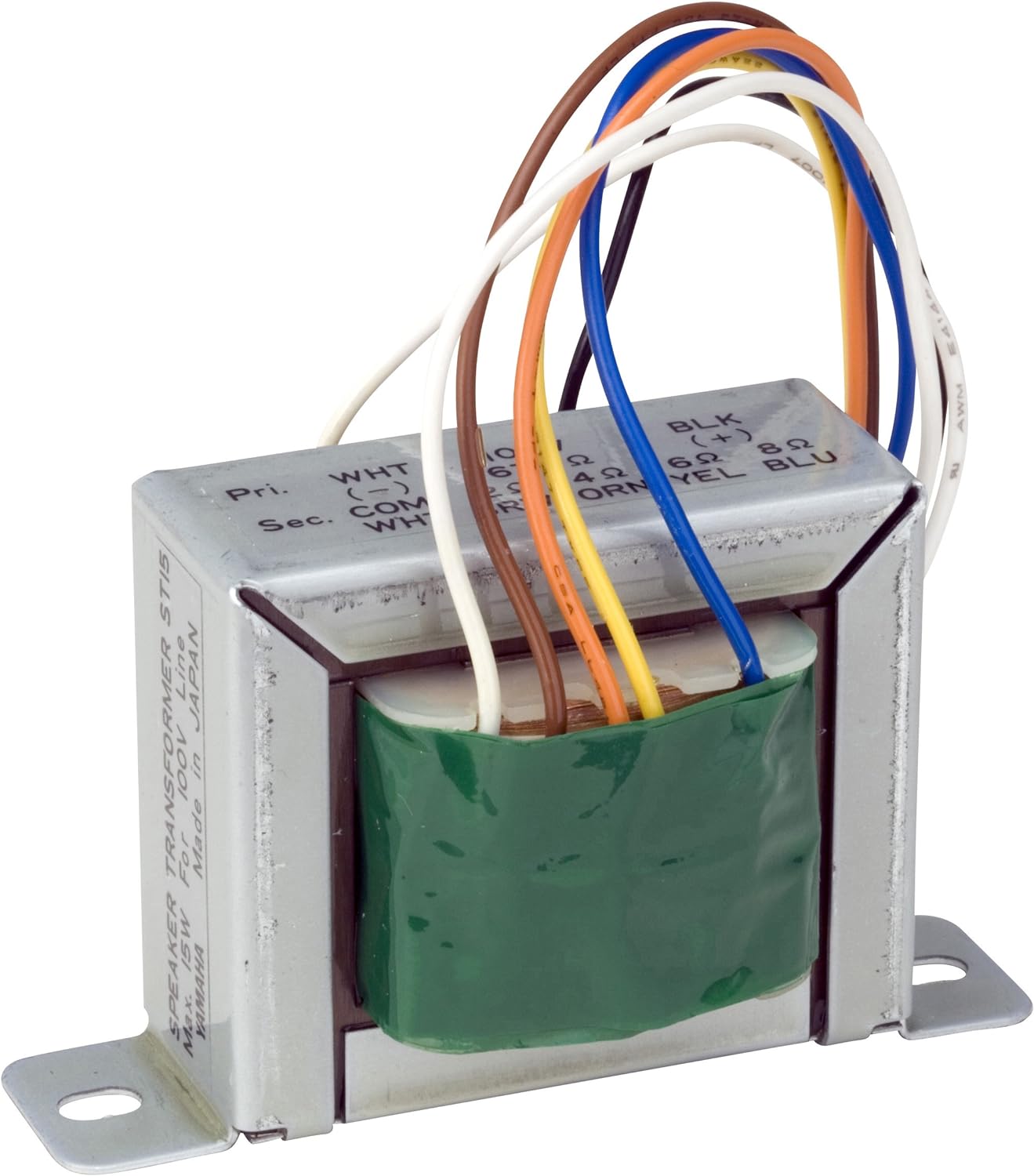

This device has a capacity of 15 W, the line output of the power amplifier connected to the primary pole is assumed to be 100 V (using a 70 V line is also possible). The blue, yellow, orange and brown secondary cords each correspond to speakers whose nominal impedance is 8, 6, 4 and 2Ω, while the input impedance of the connected power amplifier is 670Ω. TECHNICAL SPECIFICATIONS Capacity 15 W Continuous Frequency Response 50 Hz–20 kHz Total Harmonic Distortion ≤ 1% (1 kHz, 15 W) Insertion Loss ≤ 1.5 dB Dimensions (W × H × D) 80 × 48 × 46 mm (3-1/8″ × 1-7/8″ × 1-13/16″) Weight 450 g (15.8 oz)
