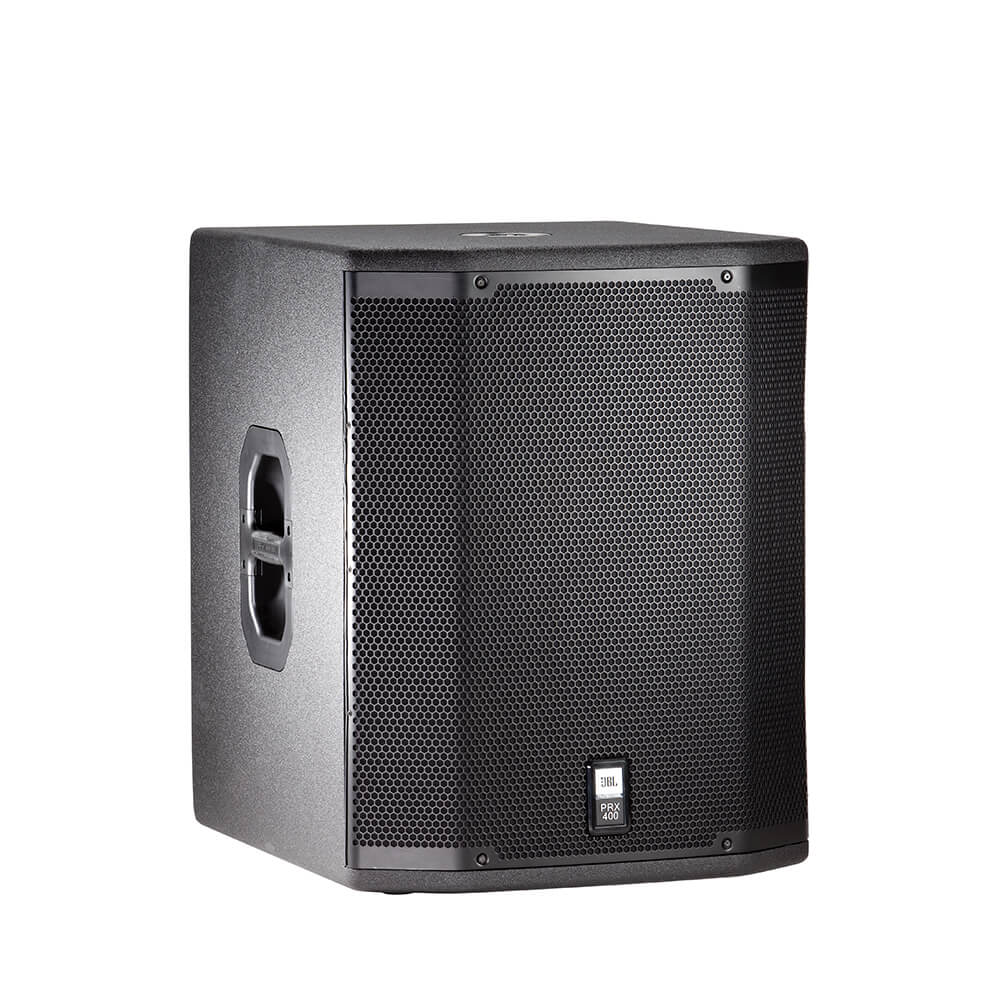

The JBL PRX418S 18″ Passive Subwoofer is a compact, high power subwoofer system containing a JBL Selenium 457 mm (18″) woofer in a front-loaded, vented enclosure. The enclosure is designed to present a minimum frontal area. JBL PRX418S 18″ Passive Subwoofer offers complete input connection flexibility for compatibility with a variety of cabling schemes. The input panel incorporates a pair of Neutrik® Speakon® NL-2 / ¼” TS phone combo jack connectors wired in parallel. The JBL PRX418S 18″ Passive Subwoofer is supplied with pins 1/-1 connected to the woofer. The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL’s rugged DuraFlex™ finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance. Key Features 18-inch JBL Selenium driver for extended low-frequency output Large vent area for reduced distortion Low profile and compact Tough DuraFlex™ finish enclosure Applications Live performance venues Mobile and fixed DJ systems Specifications Frequency Range 35 Hz – 250 Hz Frequency Response 52 Hz – 120 Hz System Sensitivity 95 dB SPL (1w@1m) Power Rating, Pink Noise 800 W / 1600 W / 3200 W(Continuous/Program/Peak) Maximum SPL (1m) 130 dB SPL peak Nominal Impedance 8 ohms Dimensions (H x W x D) 678 mm x 536 mm x 615 mm (26.7″ x 21.1″ x 24.2″) Net Weight 36 kg (79 lbs.) Inputs Two Neutrik® Speakon® NL-2 / ¼” TS phone combo jacks Enclosure Duraflex coated plywood
