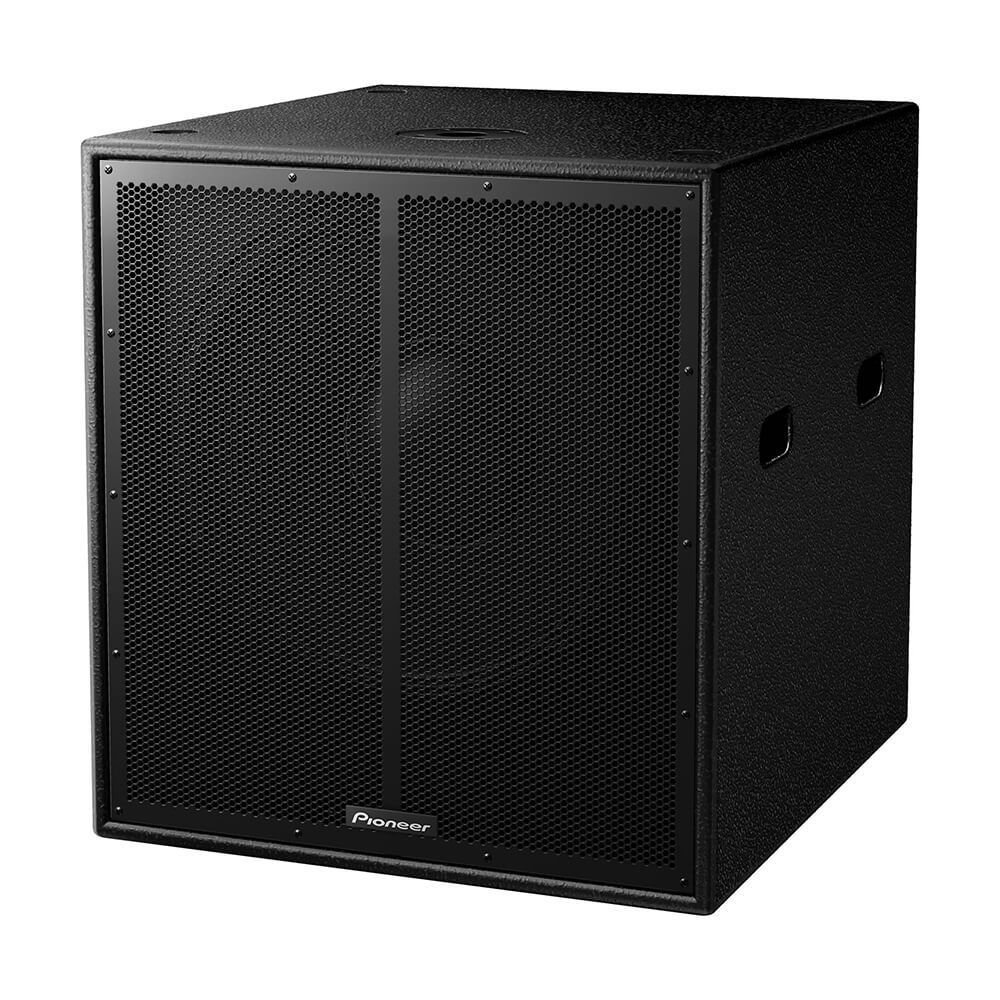

Features High-power subwoofer with an 18-inch, low-frequency driver. Capable of reproducing deep bass as low as 35 Hz without distortion. Strong pillars installed in the cabinet ensure rigidity against the most powerful bass. Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-152, XY-122, XY-101 and XY-81). NL4 INPUT and LINK OUT connections as standard. Pole mount for quick set-up with other Pioneer products. Robust enclosure made from premium multi-laminate birch plywood. Product Specifications General Loudspeaker Type: Single driver, reflex-loaded subwoofer Frequency Response: 35 Hz – 150 Hz Sensitivity (1 W/1 m): 97 dB (half space) Nominal Impedance: 8 W Power Handling: 1000 W RMS, 2000 W Program Maximum SPL: 127 dB cont., 133 dB peak (half space) Driver Configuration: 18″ (457 mm) ferrite LF cone driver Connectors: 2 × Neutrik SpeakON™ NL4 Physical Dimensions (W×H×D): 590 mm × 643 mm × 650 mm / 23.2″ × 25.3″ × 25.6″ Weight: 52.0 kg / 114.7 lbs. Rigging and Hardware 4 × flush handles (2 left/2 right), 1 × M20 polemount socket for mid/high enclosures, 4 × rubber feet (bottom) and 4 ×mating recesses (top), 16 × M8 holes with pre-inserted bolts for 4 ×castors on rear Grille: Hex punched steel Enclosure: 18 mm (0.7″) birch plywood Finish: Impact-resistant textured paint, XY-118S: Black
