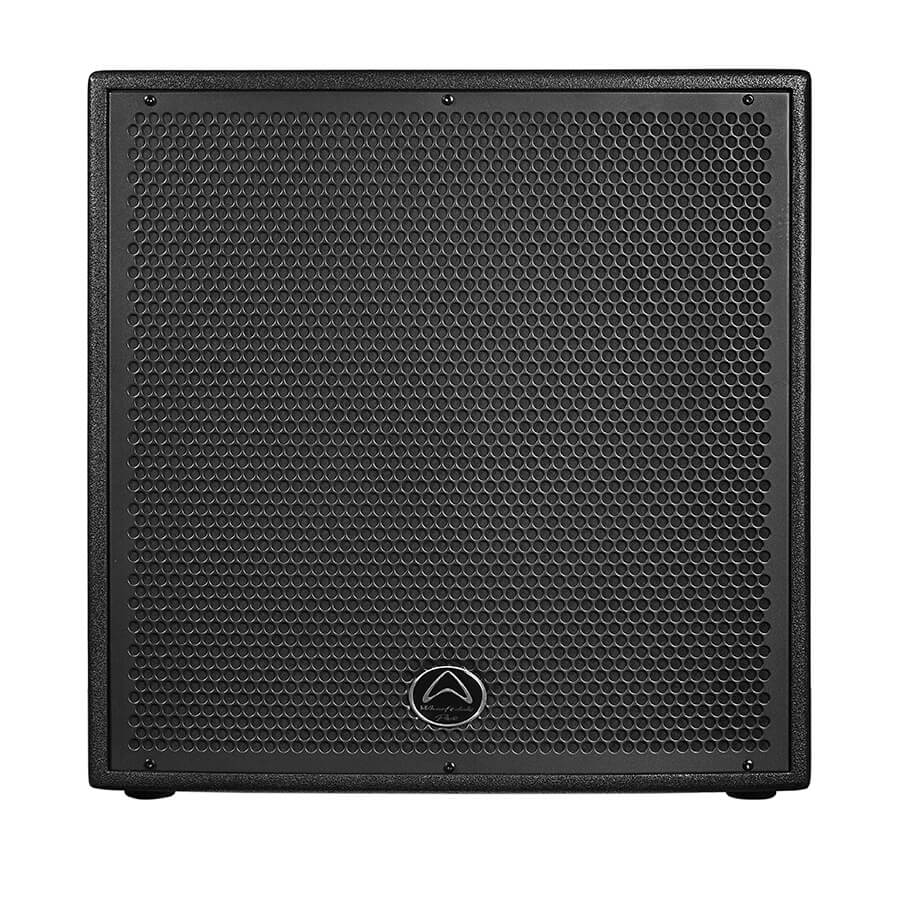

BIRCH PLYWOOD Delta-AX subwoofers use premium Baltic birch plywood construction. Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character. Delta-AX subs are also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a Delta-AX will always look as good as the day you unboxed it. ROUTED LOGO Delta-AX subs feature a routed Wharfedale Pro logo. This fresh design helps to distinguish between the original Delta-A models and the updated Delta-AX models. It is also a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality. SUBWOOFERS The 15″ and 18″ active subwoofers use a single Class D amplifier to drive the LF transducer. Inside the Delta-AX subwoofers is a highly efficient Class D amplifier. The amplifier has been perfectly matched to the custom low frequency driver. This perfect combination leads to maximum efficiency and supreme output SPL. SPECIFICATIONS Model Name DELTA-AX18B System Type Active 18” Subwoofer Frequency Response ( /-3 dB) 38 Hz – 200 Hz Calculated Maximum SPL @1 m 132 dB Low Frequency Transducer – Size (mm / inches) 470 mm / 18″ Coil Size (mm / inches) 101.6 mm / 4″ Impedance 8 Ω Amplifiers Low-Frequency Power Amplifier RMS 1000 w (Class D) High-Frequency Power Amplifier RMS NA Amplifier Protection Yes Power On Protection Power switch on/off mute Thermal Protection Amplifier Shut Down. Auto Reset Low Line Voltage Shut Down 80% Nominal Line Voltage Driver Protection Yes DC and Short Protection Yes Clip Limiter Turns on Appro x 1000 w Output Limiter Indicator Red LED Power Indicator Green LED Connectors Input A – type Balanced Input Sensitivity Line:0 dBu Maximum Input Level 22 dBu Input Connector TRS jack and socket XLR Input Impedance Balanced:20 KΩ Unbalanced:10 KΩ Line Output Connector pin XLR Connector Impedance Balanced Balanced: 200 Ω Unbalanced:100 Ω Loop Gain 0 dB AC Power details – Power Supply High Efficiency SMPS AC Power Options AC100-120 V~ / 220-240 V~,50/60 HZ Power On Indicator Green LED Hardware – Rigging Enclosure Material and finish 15 mm Plywood Colour Options Black Rhino Paint Grille Material & Finish Unpacked dimensions – Height 539 mm / 21.22″ Width (Front) 539 mm / 21.22″ Width (Back) 539 mm / 21.22″ Depth 650 mm / 25.59″ Packed Dimensions – Height 624 mm / 24.57″ Width (Front) 722 mm / 28.43″ Width (Back) 722 mm / 28.43″ Depth 611 mm / 24.06″ Net Weight (kg / lbs) 38.4 kg / 84.48 lbs Gross Weight (kg / lbs) 44.3 kg / 97.46 lbs
