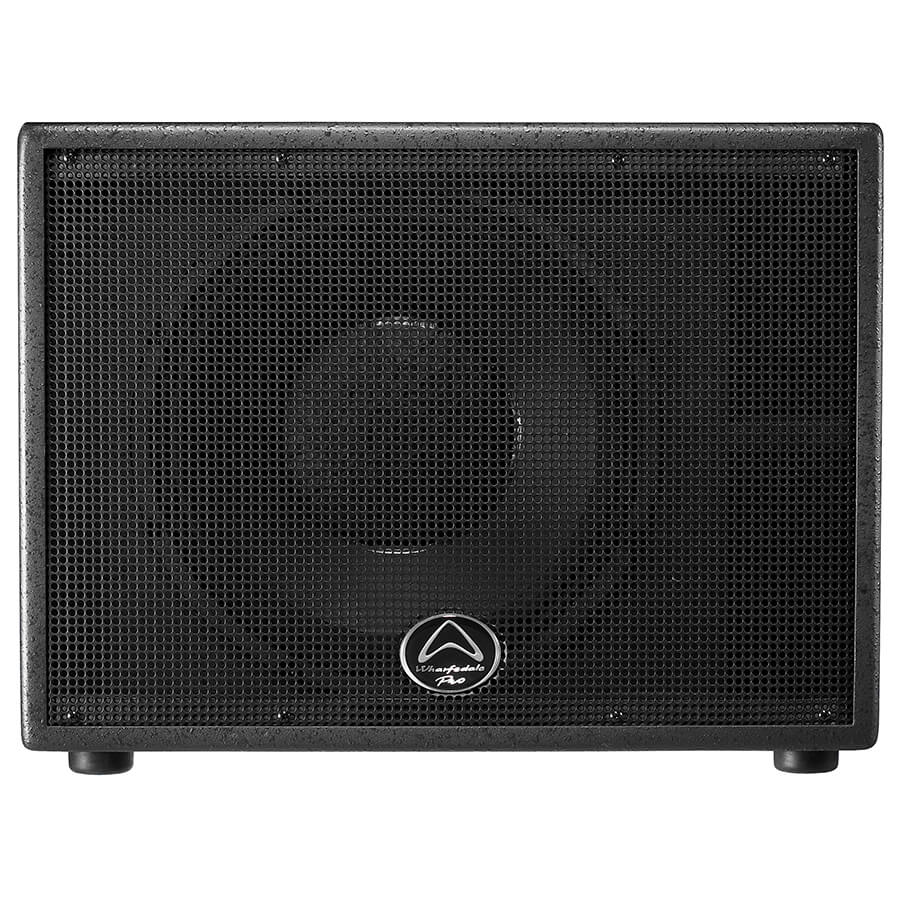

TITAN SUB A12 The Wharfedale Pro Titan Sub-A12, is a powerful active subwoofer system for small to medium active PA speaker setups. It utilises a 12” active reflex subwoofer to generate 250W RMS (500W peak) power, with a frequency response of 55-200Hz. It’s a perfect match teamed up with the Wharfedale Titan 8A MKII for an incredibly portable sound reinforcement system. .2.5“ Voice coil 127 dB Max SPL @ 1 meter 250 watts Continuous power 500 watts Peak power SOLID BASS Compact, portable and powerful. A powerful 12” reflex subwoofer designed to provide bass extension for 8″ active systems for an incredibly portable sound reinforcement setup. Perfect for Tourus-AX8, Titan 8A MKII or even Typhon-AX8 models A built-in 250 W (continuous), 500 W (peak) amplifier conveniently accepts stereo or mono line level inputs via dual, balanced, XLR- 1/4” combo connectors. PRACTICAL FEATURES • Preset integral peak limiter prevents signal distortion and amplifier clipping • Integral phase switch with 0° and 180° selections • Adjustable crossover frequency: 80 Hz / 100 Hz / 120 Hz / 150 Hz / 180Hz / 200Hz • High pass frequency selection:150 Hz • Thermal, DC fault and short circuit protection • XLR / 1⁄4 ” combo jack inputs • Balanced line level output • Integral pole mount adapter 35 mm pole socket MDF construction covered in Rhino Rock paint Convection cooling Main volume control Adjustable crossover filter. 80 Hz – 200 Hz Combo jack balanced inputs Balanced XLR outputs NEED SOMETHING BIGGER? Titan SUB-A12 is portable, powerful and practical but….to move even more air, the 15″, 700 W Continuous T-SUB-AX15B is the next step up. LEARN MORE ABOUT T-SUB-AX15B SPECIFICATIONS Model Name Titan Sub A12 System Type Active 12″ Reflex Subwoofer Frequency Response ( /-3 dB) 55 Hz-200 Hz Frequency Range (-10 dB) 50 Hz-200 Hz Calculated Maximum SPL @1 m 127 dB LF Transducer Size (mm / inches) 305 mm / 12” Coil Size (mm / inches) 64.26 mm / 2.5″ Amplifiers Low-Frequency Power Amplifier RMS/Peak Watts 250/500 W (Class D) Controls—EQ Crossover filter : 80 Hz – 200 Hz (adjustable) DSP Hi Pass switch 150 Hz Amplifier Protection / Thermal protection Yes Low Line Voltage Shut Down 60% Nominal line voltage Driver Protection Independent LF limiters DC Protection / Short Protection Yes Clip Limiter Tums on ~250 W output Limiter Indicator / Power Indicator Red LED / Green LED Connectors Input – type 0 / 180° phase switch Input Connector 2 * XLR 1/4″ Combo Jack Line Output Connector Hi Pass out : 2 * Balanced XLR AC Power Supply SMPS AC Power Options AC100-120 V~/220-240 V~,50/60 Hz Hardware Rigging / Bracket / Mounting Options 35 mm socket 2 carry handles (one on each side) LED Horn lighting (On/Off switch) No Enclosure Material and finish 15 mm MDF Colour Options Grey / Black Grille Material & Finish 1.2 mm steel Dimensions – Unpacked – Height 360 mm / 14.2” Width Front 493 mm / 19.4” Depth 431 mm / 16.9” Dimensions – packed – Height 440 mm / 17.3” Width Front 560 mm / 22.0” Depth 440 mm / 17.3” Net Weight (kg / lbs) 22.31 kg / 49.0 lbs Gross Weight (kg / lbs) 26.26 kg / 57.8 lbs
