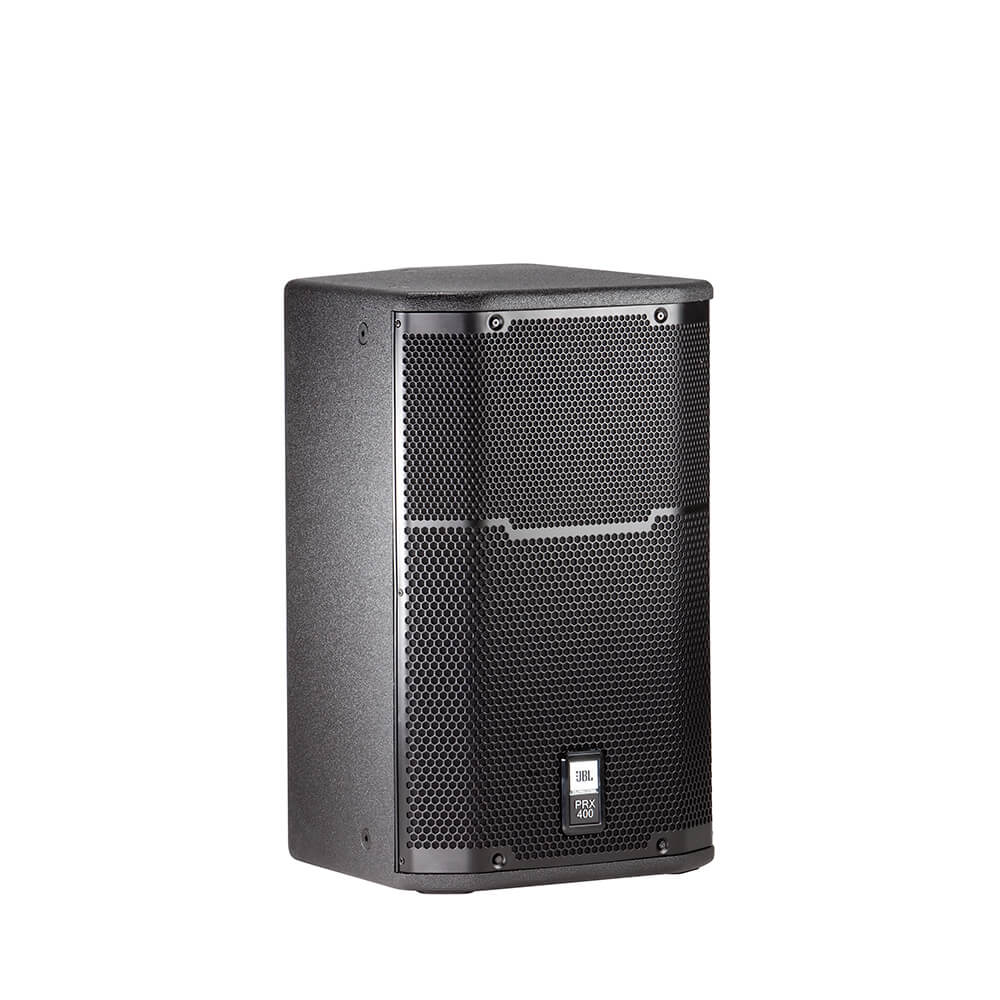

JBL PRX412M 12″ Two-Way Stage Monitor and Loudspeaker

The PRX412M is a premium, utility/monitor speaker. The PRX412M uses a 305 mm (12 in) woofer and a 2414H-C 25 mm (1 in) polymer diaphragm compression driver for 300 watts (continuous) power capacity. A 90° x 50° horn provides smooth, even coverage whether used in the vertical (mains) or horizontal (monitor) orientation. NL-2 and ¼” phone combination connectors are provided. A passive network provides accurate reproduction throughout the cross-over region. For use on a tripod or over a subwoofer, JBL’s dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage. The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL’s rugged DuraFlex™ finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance. Features 90° x 50° coverage for even and smooth response on and off axis Dual-angle pole socket for applications requiring tripod mounting Heavy Duty 16 gauge protective screen backed steel grille Tough DuraFlex™ enclosure finish Utilizes twelve M10 suspension points for safe deployment in light duty installations. SonicGuard™ protects the high frequency driver from excess power without interrupting the performance. Applications Speech reinforcement Live performance stage monitoring Reinforcement of vocal and acoustic music High-performance satellite speaker for use with subwoofers Specifications Frequency Range (-10dB) 50 Hz – 20 kHz Frequency Response (±3 dB) 62 Hz – 19 kHz Coverage Pattern 90° x 50° nominal System Sensitivity 95 dB SPL (1w@1m) Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak) Maximum SPL (1m) 126 dB SPL peak Nominal Impedance 8 ohms Dimensions (H x W x D) 574 mm x 353 mm x 399 mm (22.6 in x 13.9 in x 15.7 in) Net Weight 16 kg (35 lbs.) Inputs Parallel Neutrik® Speakon® NL-2 / ¼” phone combo jacks Enclosure Duraflex coated plywood
